L31※nginx反向代理为Notion加速

1> 用oneinstack一键安装nginx

wget -c http://mirrors.linuxeye.com/oneinstack-full.tar.gz && tar xzf oneinstack-full.tar.gz && ./oneinstack/install.sh --nginx_option 1 --pureftpd  --reboot

2> 修改配置

a. 配置中添加重定向 return 301 https://$host$request_uri;

~# vim /usr/local/nginx/conf/nginx.conf

user www www;
worker_processes auto;

error_log /data/wwwlogs/error_nginx.log crit;
pid /var/run/nginx.pid;
worker_rlimit_nofile 51200;

events {
  use epoll;
  worker_connections 51200;
  multi_accept on;
}

http {
  include mime.types;
  default_type application/octet-stream;
  server_names_hash_bucket_size 128;
  client_header_buffer_size 32k;
  large_client_header_buffers 4 32k;
  client_max_body_size 1024m;
  client_body_buffer_size 10m;
  sendfile on;
  tcp_nopush on;
  keepalive_timeout 120;
  server_tokens off;
  tcp_nodelay on;

  fastcgi_connect_timeout 300;
  fastcgi_send_timeout 300;
  fastcgi_read_timeout 300;
  fastcgi_buffer_size 64k;
  fastcgi_buffers 4 64k;
  fastcgi_busy_buffers_size 128k;
  fastcgi_temp_file_write_size 128k;
  fastcgi_intercept_errors on;

  #Gzip Compression
  gzip on;
  gzip_buffers 16 8k;
  gzip_comp_level 6;
  gzip_http_version 1.1;
  gzip_min_length 256;
  gzip_proxied any;
  gzip_vary on;
  gzip_types
    text/xml application/xml application/atom+xml application/rss+xml application/xhtml+xml image/svg+xml
    text/javascript application/javascript application/x-javascript
    text/x-json application/json application/x-web-app-manifest+json
    text/css text/plain text/x-component
    font/opentype application/x-font-ttf application/vnd.ms-fontobject
    image/x-icon;
  gzip_disable "MSIE [1-6]\.(?!.*SV1)";

  ##Brotli Compression
  #brotli on;
  #brotli_comp_level 6;
  #brotli_types text/plain text/css application/json application/x-javascript text/xml application/xml application/xml+rss text/javascript application/javascript image/svg+xml;

  ##If you have a lot of static files to serve through Nginx then caching of the files' metadata (not the actual files' contents) can save some latency.
  #open_file_cache max=1000 inactive=20s;
  #open_file_cache_valid 30s;
  #open_file_cache_min_uses 2;
  #open_file_cache_errors on;

  log_format json escape=json '{"@timestamp":"$time_iso8601",'
    '"server_addr":"$server_addr",'
    '"remote_addr":"$remote_addr",'
    '"scheme":"$scheme",'
    '"request_method":"$request_method",'
    '"request_uri": "$request_uri",'
    '"request_length": "$request_length",'
    '"uri": "$uri", '
    '"request_time":$request_time,'
    '"body_bytes_sent":$body_bytes_sent,'
    '"bytes_sent":$bytes_sent,'
    '"status":"$status",'
    '"upstream_time":"$upstream_response_time",'
    '"upstream_host":"$upstream_addr",'
    '"upstream_status":"$upstream_status",'
    '"host":"$host",'
    '"http_referer":"$http_referer",'
    '"http_user_agent":"$http_user_agent"'
    '}';

  ######################## default ############################
  server {
    listen 80;
    server_name _;
    access_log /data/wwwlogs/access_nginx.log combined;
    root /data/wwwroot/default;
    index index.html index.htm index.php;
    #error_page 404 /404.html;
    return 301 https://$host$request_uri;
  }
  ########################## vhost #############################
  include vhost/*.conf;
}

b. nginx.conf中添加stream配置

stream {

  log_format proxy '$proxy_protocol_addr  $remote_addr [$time_local] '
    '$protocol $status $bytes_sent $bytes_received '
    '$session_time "$upstream_addr" "$ssl_preread_server_name" '
    '"$upstream_bytes_sent" "$upstream_bytes_received" "$upstream_connect_time"';

  access_log /usr/local/nginx/logs/access.log proxy;
  error_log /usr/local/nginx/logs/error.log info;

  # 服务器配置
  map_hash_bucket_size 64;
  map $ssl_preread_server_name $backend_pool {
    www.notion.so server_notion;
    s3.us-west-2.amazonaws.com server_s3;
    msgstore.www.notion.so server_msg;
    notion.so server_n;
  }
  upstream server_msg {
    server msgstore.www.notion.so:443 ;
  }
  upstream server_n {
    server notion.so:443;
  }
  upstream server_notion{
    server www.notion.so:443;
  }
  upstream server_s3{
    server s3.us-west-2.amazonaws.com:443;
  }

  # 限速
  map $ssl_preread_server_name $upspeed{
    www.notion.so 1024k;
    s3.us-west-2.amazonaws.com 512k;
    msgstore.www.notion.so 256k;
    notion.so 256k;
  }
  map $ssl_preread_server_name $downspeed{
    www.notion.so 1024k;
    s3.us-west-2.amazonaws.com 256k;
    msgstore.www.notion.so 256k;
    notion.so 256k;
  }

  server{
    listen 443;
    ssl_preread on;
    proxy_pass $backend_pool;
    proxy_connect_timeout 15s;
    proxy_timeout 15s;
    proxy_next_upstream_timeout 15s;
    # 取消限速
    # proxy_download_rate $downspeed;
    # proxy_upload_rate $upspeed;
  }
}

3> PC端修改host文件

192.168.1.100为示例ip

192.168.1.100 www.notion.so
192.168.1.100 msgstore.www.notion.so

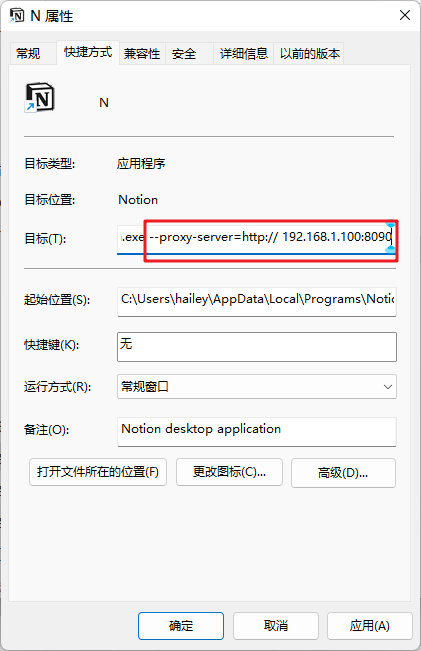

4> pc端notion添加http代理

–proxy-server=http:// 192.168.1.100:8090
